HY12-1200W-3C2-210
LED Grow Light Specification....
【Daisy-Chain One Channel Dimmable】This led grow light for indoor plant has a master dimmable
controller to control the light intensity required for different
plant growth stages. One channel dimmer is easy for client to
dimmable the different wavelength of spectrum. The daisy-chain
function allows you to connect 50-100 LED grow lamps and can be
dimmed simultaneously.

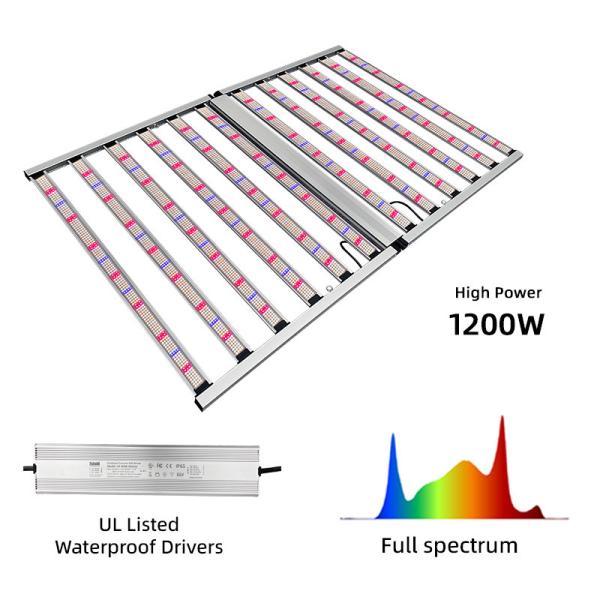

【Max 4x8ft Coverage Area Plant Lamp Full Spectrum】1200Watts (Full spectrum white light+660nm+730nm+460nm) is perfect
for vegetable to grow, 12 pcs LED strip light bars, it can provide
evenly distributed light intensity.It can coverage for 4x8ft of
high-yielding full-cycle growth.
【Approved UL CE Certificate Power Supply and Foldable Aluminium
Bracket 】 The driver of our grow lights is 1200 Watts with approved UL CE
certificate and the high energy efficiency with 2.8 μmol/J, and
also has the IP54 waterproof grade for indoor plants. Our full
spectrum grow lights can up to 50,000 hours to work.
【Premium Quality for Heatsink and No Noise】Our grow lights are made of 12 led strip aluminium bars, which has
efficient heat dissipation with cooling functions. it's powerful
heat dissipation ability that no need to buy more cooling
devices.This led plant light has no fan, there will be no noise.
【5 years Warranty and professional Guidance】 We provide 5 years warranty .we are gladly to give you
professional guidance and friendly customer service to helps your
plants grow better. If you have any questions, please contact us
anytime.
660nm red lights is most useful for plant photosynthesis, promote
plant flowering and fruiting, increase yield and crop quality.
730nm IR light is most useful for plant photosynthesis, promote
plant flowering and fruiting, increase yield and crop quality.
SPECIFICATION
| Product Name | 1200W LED Grow Light |
| Model number | HY12-1200W-3C2-210 |
| Power | 1200W +/-5% |
| Input voltage | 100-277VAC 50/60Hz |
| LED Driver | UL CE Driver |
| Lumen | 192000LM |
| Lumen efficiency CRI | 160LM/W >80 |
PPFD (Photosynthetic Photon Flux Density) (380-780nm) | 3360μmol/m²/s |
| Channel | 1 channel |
| Dimmable | 0-10V PWM dimming |
PPE (Photosynthetic Photon Efficacy) | 2.8μmol/J |
| Full spectrum | Full spectrum white light+660nm+730nm+460nm |
| Mounting height | ≥ 6" (15.2cm) Above canopy |
| Supplementation time | Vegetative Stage: 12 - 14 hours on; Flowering Stage: 9-12 hours on;
Fruiting Stage: 7-8 hours on.
|
| Product size | 2100*1100mm |
| PF | >0.95 |
| THD | <15% |
| LED Strip Bar | 12 |
| Angle | 120° |
| Housing color/Material | Silver/Aluminium |
| Coverage | 4x8ft |
| IP | IP54 (Indoor using) |
| Lifespan | >50,000H |
| Working Temperature | -20°C~+45°C |
| Operating Humidity | <95% |
| Storage Temperature | -40°C~+80°C |
| Input voltage(AC) | 100 V 220 V 240 V 277 V |
| Input current at 100% | 11A 5.5A 5A 4.4A |
Dimension(mm ±2mm)
Specturm
PPFD Distribution
