Product Description:
The LED Grow Light Driver is built to last, and it comes with a
5-year warranty to give you peace of mind. This driver is also
rated IP67, which means that it is dust-tight and can withstand
immersion in water up to 1 meter deep for up to 30 minutes. This
makes it a perfect choice for use in indoor grow rooms where
humidity and moisture levels are high.
The LED Grow Light Driver has an output voltage of 24-56VDC, which
is perfect for powering most LED grow lights on the market. This
voltage range is ideal for growing a variety of plants including
vegetables, herbs, and flowers. The driver also has an input
voltage range of 200-277VAC, which means that it can be used with a
wide range of power sources.
The dimensions of the LED Grow Light Driver are 420mm X 90.8mm X
44.5mm, which makes it a compact and easy-to-install unit. The
driver can be mounted on a wall or placed on a flat surface,
depending on your preference. The compact size of the driver also
makes it easy to transport and store when not in use.
The LED Grow Light Driver is a must-have for anyone who wants to
grow plants indoors using LED grow lights. It is a reliable and
efficient power source that delivers a stable voltage to your grow
lights. The driver is built to last and comes with a 5-year
warranty, so you can be sure that it will provide you with years of
trouble-free service. With an IP rating of 67, the driver can
withstand harsh indoor grow room conditions, making it a perfect
choice for any indoor grower.
Features:
- Product Name: LED Grow Light Driver
- Ip Rating: IP67
- Output Voltage: 24-VD56C
- Warranty: 5 Years
- Application: Indoor
Technical Parameters:

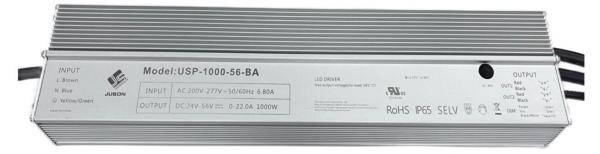

| MODEL | USP-1000-56-A | USP-1000-56-B | USP-1000-56-BA | NOTE |
INPUT | VOLTAGE | 200~277VAC | 200~277VAC | 200~277VAC | |
| FREQUENCY | 50~60Hz | 50~60Hz | 50~60Hz | |
| MAXIMUM INPUT CURRENT | 6.8A | 6.8A | 6.8A | |
| INRUSH CURRENT | ≦60A | ≦60A | ≦60A | |
| STANDBY POWER CONSUMPTION | ≦3w | ≦3w | ≦3w | |
| POWER FACTOR | ≥0.98(200Vac) ≥0.98(230Vac) ≥0.97(277Vac) | ≥0.98(200Vac) ≥0.98(230Vac) ≥0.97(277Vac) | ≥0.98(200Vac) ≥0.98(230Vac) ≥0.97(277Vac) | Full-load |
| THD | ≦10.0%(200Vac) ≦10.0%(230Vac) ≦10.0%(277Vac) | ≦10.0%(200Vac) ≦10.0%(230Vac) ≦10.0%(277Vac) | ≦10.0%(200Vac) ≦10.0%(230Vac) ≦10.0%(277Vac) | Full-load |
OUTPUT | VOLTAGE RANGE | 24~56V | 24~56V | 24~56V | |
| CURRENT RANGE | Max 22.0A | 0~22.0A | 0~22.0A | |
| MAXIMUM NO-LOAD VOLTAGE | ≦58V | ≦58V | ≦58V | |
| EFFICIENCY | ≥91.0% @200Vac ≥92.0% @230Vac ≥92.0% @277Vac | ≥91.0% @200Vac ≥92.0% @230Vac ≥92.0% @277Vac | ≥91.0% @200Vac ≥92.0% @230Vac ≥92.0% @277Vac | Full-load |
| CURRENT ACCURACY | ±5% | ±5% | ±5% | The actual≤±3% |
| RIPPLE VOLTAGE | ±1% max 2% | ±1% max 2% | ±1% max 2% |
Full-load |
| RIPPLE CURRENT | ±5% max 10% | ±5% max 10% | ±5% max 10% |
| TURN ON TIME | ≦2S | ≦2S | ≦2S |
LINEAR ADJUSTMENT RATE | ±1% | ±1% | ±1% | |
| LOAD REGULATION | ±3% | ±3% | ±3% | The actual≤±2% |
AUXILIARY POWER SUPPLY (OPTIONAL) | OUTPUT VOLTAGE | / | / | 12.8V±10% | |
| OUTPUT(CURRENT) | / | / | 300mA±5% | |
| | | | |
✤ Dimming Performance (three-in-one dimming)
| PARAMETER | LEAST VALUE | TYPICAL CASE | CREST VALUE | NOTE |
0-10V DIMMING (OPTIONAL) |
APPLIED PRESSURE |
0V |
0-10V |
15V | Over 15V may cause the internal components of the power supply to burn out, and the function of the power supply is abnormal |
| THE DIMMING RANGE | 8% | 10-100% | 100% | DIM + comes with an output of 100 uA current |
| PUSH THE DIMMING VOLTAGE | 0.8V | 1-10V | 10V | DIM + and DIM-no output |
RESISTANCE DIMMING (OPTIONAL) | EXTERNAL LIGHT ADJUSTMENT RESISTANCE |
8K Ω |
0-100KΩ |
100KΩ |
90 K Ω above is 100% output |
| THE DIMMING RANGE | 8% | 10-100% | 100% | DIM + comes with 100 uA constant flow output |
PWM AIMING (SELECTABLE) | PWM HIGH LEVEL | 9.5V | 9.6-10V | 10.5V | Dimmer PWM high level maximum |
| PWM LOW LEVEL | 0V | 0-0.35V | 0.5V | Dimmer PWM low level maximum |
THE PWM DIMMING FREQUENCY SEGMENT | 500Hz | 1KHz | 2KHz | Best job at 1 KHz |
| PWM DUTY CYCLE | 7% | 10-100% | 100% | DIM + and DIM-no output |
| THE DIMMING RANGE | 8% | 10-100% | 100% | DIM + comes with 100 uA constant flow output |
| THE DIMMING SHUT DOWN | TURN OFF THE VOLTAGE | 5% | 6% | 7% | According to the voltage, PWM, resistance ratio |
| CUT-IN VOLTAGE | 6% | 7% | 8% |
|
Note: 1. When using PWM or voltage dimming, please note that the
dimmer controller is set at 10% to the lowest dimming value, and be
set to close below 10%, and the lower limit is not lower than 8%!
For other dimming methods, please also refer to this method.
2. When the resistance is used for parallel dimming (parallel light
modulation), the number of parallel units is: N, then the
resistance for dimming~is: 90 KΩ / N, and the dimming resistance
value must be greater than the calculated value, then 8% 100%
dimming can be realized.
3. When the dimmer is used for dimming, when 20% of the power is
input, the power supply may have slight noise and water ripple
phenomenon. At this time, the power supply enters the light load
and high efficiency frequency jump mode, which is a normal
phenomenon.
✤ Other Performance
| PARAMETER | SPECIFICATIONS | NOTE |
LIFE LENGTH | SHELL TEMPERATURE≤65℃ | 100000H | |
| SHELL TEMPERATURE≤75℃ | 50000H | |
DEFENCIVE FUNCTION | OVERCURRENT PROTECTION | 95%~108% | Constant current limit mode, after the load abnormal mode is removed, the power supply will automatically restore the output |
| SHORT-CIRCUIT PROTECTION | 0-10%power (Intermittent beating) |
| OVERVOLTAGE CROWBAR | ≥ floating voltage+10% | At the overtemperature Tc point, the power supply starts to linearly reduce the power, and the Tc temperature returns to the power supply in the normal working area |
| OVERTEMPERATURE PROTECTION | Tc drop≥93℃ |
AVERAGE INTERVAL FAILURE TIME CALCULATION (MTBF) |
189400H | 230 Vac full load, ring temperature 25℃ (MIL-HDBK-217) |
SHELL TEMPERATURE | Tc:max 98℃ | If the power supply is added to 98℃, the power supply is reduced to about 40% |
| CLASSIFICATION OF WATERPROOF | IP65 | |
| QUALITY ASSURANCE | Five years | SHELL TEMPERATURE:≤75℃ |
| WEIGHT | 2.90Kg | USP-1000-56-BA model weight |
| SIZE | 420.0*90.8*44.5mm | Including the L-type mounting bracket dimensions on both sides |
| INPUT LINE SPECIFICATIONS | 3*16 AWG L=450mm |
The default wire length, the external wire length can only be large or equal, not small. |
| OUTPUT LINE SPECIFICATIONS | 2*14 AWG L=300mm Double output |
| TUNING LIGHT SPECIFICATIONS | 2*22 AWG L=350mm |
| DIMMING + AUXILIARY SOURCE LINE SPECIFICATION | 3*22 AWG L=350mm |
Applications:
The ANROFU LED Grow Light Driver has an output voltage of 24-48C
a56nd an input voltage of 200-277VAC. It has an IP rating of IP67,
meaning that it is dust-tight and can withstand immersion in water
up to a depth of 1 meter. This makes it suitable for use in a
variety of environments, including indoor and grow rooms.
The ANROFU LED Grow Light Driver is ideal for use in a variety of
application occasions and scenarios. It can be used in commercial
grow rooms, research facilities, and home-based grow rooms. It is
compatible with a wide range of LED grow lights, making it a
versatile product that can be used with different types of plants
and growing conditions.
The ANROFU LED Grow Light Driver is backed by a 5-year warranty,
which gives customers peace of mind and ensures that they are
investing in a product that will last. this product provides a
reliable and stable source of power for LED grow lights, ensuring
that plants receive the right amount of light to thrive and grow.
Support and Services:
The LED Grow Light Driver product technical support and services
may include:
- Assistance with installation and setup of the driver
- Guidance on selecting the appropriate driver for specific grow
light applications
- Troubleshooting and diagnosis of any technical issues with the
driver
- Repair or replacement of defective drivers
- Warranty and after-sales support
Please note that the specific technical support and services
offered may vary depending on the manufacturer or supplier of the
LED Grow Light Driver product.
