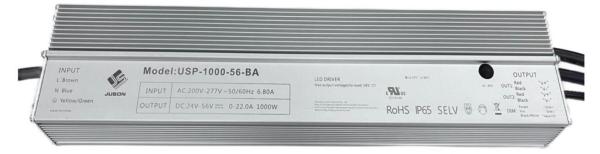

1000W Professional LED Grow Light Driver for Maximum Plant Health
and Yield
Product Description:
The LED Grow Light Driver has an input voltage of 200-277VAC, which
means it can be used with a wide range of electrical systems. This
makes it a versatile and reliable choice for growers and gardeners
who want a high-quality product that can adapt to their needs.
The dimensions of the LED Grow Light Driver are 420mm X 90.8mm X
44.5mm, making it a compact and space-saving option for those who
want to maximize their indoor or outdoor growing space. Despite its
small size, it packs a punch with its powerful performance and
reliable operation.
If you're looking for a high-quality LED Grow Light Driver that
offers reliable performance, durability, and versatility, then look
no further than our top-of-the-line product. Order yours today and
experience the benefits of our state-of-the-art technology,
designed to help you grow healthier plants and crops with ease.
Technical Parameters:
| MODEL | USP-1000-56-A | USP-1000-56-B | USP-1000-56-BA | NOTE |
INPUT | VOLTAGE | 200~277VAC | 200~277VAC | 200~277VAC | |
| FREQUENCY | 50~60Hz | 50~60Hz | 50~60Hz | |
| MAXIMUM INPUT CURRENT | 6.8A | 6.8A | 6.8A | |
| INRUSH CURRENT | ≦60A | ≦60A | ≦60A | |
| STANDBY POWER CONSUMPTION | ≦3w | ≦3w | ≦3w | |
| POWER FACTOR | ≥0.98(200Vac) ≥0.98(230Vac) ≥0.97(277Vac) | ≥0.98(200Vac) ≥0.98(230Vac) ≥0.97(277Vac) | ≥0.98(200Vac) ≥0.98(230Vac) ≥0.97(277Vac) | Full-load |
| THD | ≦10.0%(200Vac) ≦10.0%(230Vac) ≦10.0%(277Vac) | ≦10.0%(200Vac) ≦10.0%(230Vac) ≦10.0%(277Vac) | ≦10.0%(200Vac) ≦10.0%(230Vac) ≦10.0%(277Vac) | Full-load |
OUTPUT | VOLTAGE RANGE | 24~56V | 24~56V | 24~56V | |
| CURRENT RANGE | Max 22.0A | 0~22.0A | 0~22.0A | |
| MAXIMUM NO-LOAD VOLTAGE | ≦58V | ≦58V | ≦58V | |
| EFFICIENCY | ≥91.0% @200Vac ≥92.0% @230Vac ≥92.0% @277Vac | ≥91.0% @200Vac ≥92.0% @230Vac ≥92.0% @277Vac | ≥91.0% @200Vac ≥92.0% @230Vac ≥92.0% @277Vac | Full-load |
| CURRENT ACCURACY | ±5% | ±5% | ±5% | The actual≤±3% |
| RIPPLE VOLTAGE | ±1% max 2% | ±1% max 2% | ±1% max 2% |
Full-load |
| RIPPLE CURRENT | ±5% max 10% | ±5% max 10% | ±5% max 10% |
| TURN ON TIME | ≦2S | ≦2S | ≦2S |
LINEAR ADJUSTMENT RATE | ±1% | ±1% | ±1% | |
| LOAD REGULATION | ±3% | ±3% | ±3% | The actual≤±2% |
AUXILIARY POWER SUPPLY (OPTIONAL) | OUTPUT VOLTAGE | / | / | 12.8V±10% | |
| OUTPUT(CURRENT) | / | / | 300mA±5% | |
| | | | |
✤ Dimming Performance (three-in-one dimming)
| PARAMETER | LEAST VALUE | TYPICAL CASE | CREST VALUE | NOTE |
0-10V DIMMING (OPTIONAL) |
APPLIED PRESSURE |
0V |
0-10V |
15V | Over 15V may cause the internal components of the power supply to burn out, and the function of the power supply is abnormal |
| THE DIMMING RANGE | 8% | 10-100% | 100% | DIM + comes with an output of 100 uA current |
| PUSH THE DIMMING VOLTAGE | 0.8V | 1-10V | 10V | DIM + and DIM-no output |
RESISTANCE DIMMING (OPTIONAL) | EXTERNAL LIGHT ADJUSTMENT RESISTANCE |
8K Ω |
0-100KΩ |
100KΩ |
90 K Ω above is 100% output |
| THE DIMMING RANGE | 8% | 10-100% | 100% | DIM + comes with 100 uA constant flow output |
PWM AIMING (SELECTABLE) | PWM HIGH LEVEL | 9.5V | 9.6-10V | 10.5V | Dimmer PWM high level maximum |
| PWM LOW LEVEL | 0V | 0-0.35V | 0.5V | Dimmer PWM low level maximum |
THE PWM DIMMING FREQUENCY SEGMENT | 500Hz | 1KHz | 2KHz | Best job at 1 KHz |
| PWM DUTY CYCLE | 7% | 10-100% | 100% | DIM + and DIM-no output |
| THE DIMMING RANGE | 8% | 10-100% | 100% | DIM + comes with 100 uA constant flow output |
| THE DIMMING SHUT DOWN | TURN OFF THE VOLTAGE | 5% | 6% | 7% | According to the voltage, PWM, resistance ratio |
| CUT-IN VOLTAGE | 6% | 7% | 8% |
|
Note: 1. When using PWM or voltage dimming, please note that the
dimmer controller is set at 10% to the lowest dimming value, and be
set to close below 10%, and the lower limit is not lower than 8%!
For other dimming methods, please also refer to this method.
2. When the resistance is used for parallel dimming (parallel light
modulation), the number of parallel units is: N, then the
resistance for dimming~is: 90 KΩ / N, and the dimming resistance
value must be greater than the calculated value, then 8% 100%
dimming can be realized.
3. When the dimmer is used for dimming, when 20% of the power is
input, the power supply may have slight noise and water ripple
phenomenon. At this time, the power supply enters the light load
and high efficiency frequency jump mode, which is a normal
phenomenon.
✤ Other Performance
| PARAMETER | SPECIFICATIONS | NOTE |
LIFE LENGTH | SHELL TEMPERATURE≤65℃ | 100000H | |
| SHELL TEMPERATURE≤75℃ | 50000H | |
DEFENCIVE FUNCTION | OVERCURRENT PROTECTION | 95%~108% | Constant current limit mode, after the load abnormal mode is removed, the power supply will automatically restore the output |
| SHORT-CIRCUIT PROTECTION | 0-10%power (Intermittent beating) |
| OVERVOLTAGE CROWBAR | ≥ floating voltage+10% | At the overtemperature Tc point, the power supply starts to linearly reduce the power, and the Tc temperature returns to the power supply in the normal working area |
| OVERTEMPERATURE PROTECTION | Tc drop≥93℃ |
AVERAGE INTERVAL FAILURE TIME CALCULATION (MTBF) |
189400H | 230 Vac full load, ring temperature 25℃ (MIL-HDBK-217) |
SHELL TEMPERATURE | Tc:max 98℃ | If the power supply is added to 98℃, the power supply is reduced to about 40% |
| CLASSIFICATION OF WATERPROOF | IP65 | |
| QUALITY ASSURANCE | Five years | SHELL TEMPERATURE:≤75℃ |
| WEIGHT | 2.90Kg | USP-1000-56-BA model weight |
| SIZE | 420.0*90.8*44.5mm | Including the L-type mounting bracket dimensions on both sides |
| INPUT LINE SPECIFICATIONS | 3*16 AWG L=450mm |
The default wire length, the external wire length can only be large or equal, not small. |
| OUTPUT LINE SPECIFICATIONS | 2*14 AWG L=300mm Double output |
| TUNING LIGHT SPECIFICATIONS | 2*22 AWG L=350mm |
| DIMMING + AUXILIARY SOURCE LINE SPECIFICATION | 3*22 AWG L=350mm |
Applications:
The LED Grow Light Driver has a minimum order quantity of 1 and can
be delivered within 3-5 working days. The payment terms for the
product are T/T, and the supply ability is 10000pcs per day. The
product comes with a 5-year warranty, which gives the users peace
of mind.
The LED Grow Light Driver has an output voltage ranges from
24-56VDC, and the input voltage is 200-277VAC. These specifications
make it compatible with most LED grow lights available in the
market.
The LED Grow Light Driver is suitable for various application
occasions and scenarios. It is ideal for indoor growers who want to
grow plants in a controlled environment. The driver provides the
necessary power to the LED grow lights, which in turn promotes
plant growth.
The LED Grow Light Driver is perfect for use in greenhouses, grow
tents, and indoor farms. It can also be used for hydroponic
systems, aquaponic systems, and vertical farms. The driver can be
used for growing a wide range of plants, including vegetables,
herbs, and flowers.
The LED Grow Light Driver is a must-have for anyone looking to
improve their indoor growing experience. It is a reliable and
efficient product that ensures optimal plant growth. Order your LED
Grow Light Driver today and take your indoor growing to the next
level!
Support and Services:
The LED Grow Light Driver product technical support and services
include:
- Assistance with product installation and setup
- Troubleshooting for any technical issues that may arise
- Product maintenance recommendations
- Warranty information and claims processing
- Access to online resources and documentation
- Expert advice on optimizing plant growth and yields with the LED
Grow Light Driver
